Intel® for 8^th Generation Core^™ Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list

Intel® B365

4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor.
** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.

Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/DisplayPort  /D-Sub ports
- Supports HDMI with max. resolution 4096  x 2160  @ 24 Hz / 2560  x 1600  @ 60 Hz
- Supports D-sub with max. resolution 1920  x 1200  @ 60  Hz
- Supports DisplayPort with max. resolution 4096  x 2304  @ 60  Hz
Maximum shared memory of 1024  MB (for iGPU exclusively)
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Supports up to 3  displays simultaneously

1 x PCIe 3.0/2.0 x16
2 x PCIe 3.0/2.0 x1
1 x PCI

Intel® B365 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (x4 PCIE mode)
Support Raid 0, 1, 5
Intel® B365 Chipset :
6 x SATA 6Gb/s port(s),
Support Raid 0, 1, 5, 10
Intel® Optane™ Memory Ready

Intel® I219V, 1 x Gigabit LAN Controller(s)

Realtek® ALC887 8-Channel High Definition Audio CODEC *¹
- Supports : Jack-detection, Front Panel Jack-retasking

Intel® B365 Chipset :
8 x USB 3.1 Gen 1 port(s) (4 at back panel, blue, 4 at mid-board)
Intel® B365 Chipset :
6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)

Bespoke Motherboard Design & Business Focused Features :
- ASUS Self Recovering BIOS: Automatically recover BIOS update once crash happen
- ASUS Event Log: Record activities of system and provides information in BIOS
- ASUS Commercial BIOS kit: Speed up BIOS update solutionby partial BIOS design
- Anti-Moisture: Against moisture and corrosion — prolonging the life of your motherboard
- 24/7 Reliability: Tested under temperature up to 45°C and humidity up to 80% to ensure handle diverse environment
Easy Assembly Design:
- Fixed-position&Color-coded Connectors: Enable easy identification and cable-matching, speeding up the production line
- Box Headers: USB headers are box style, enabling fast connector installation and preventing pin damage
Digi+VRM

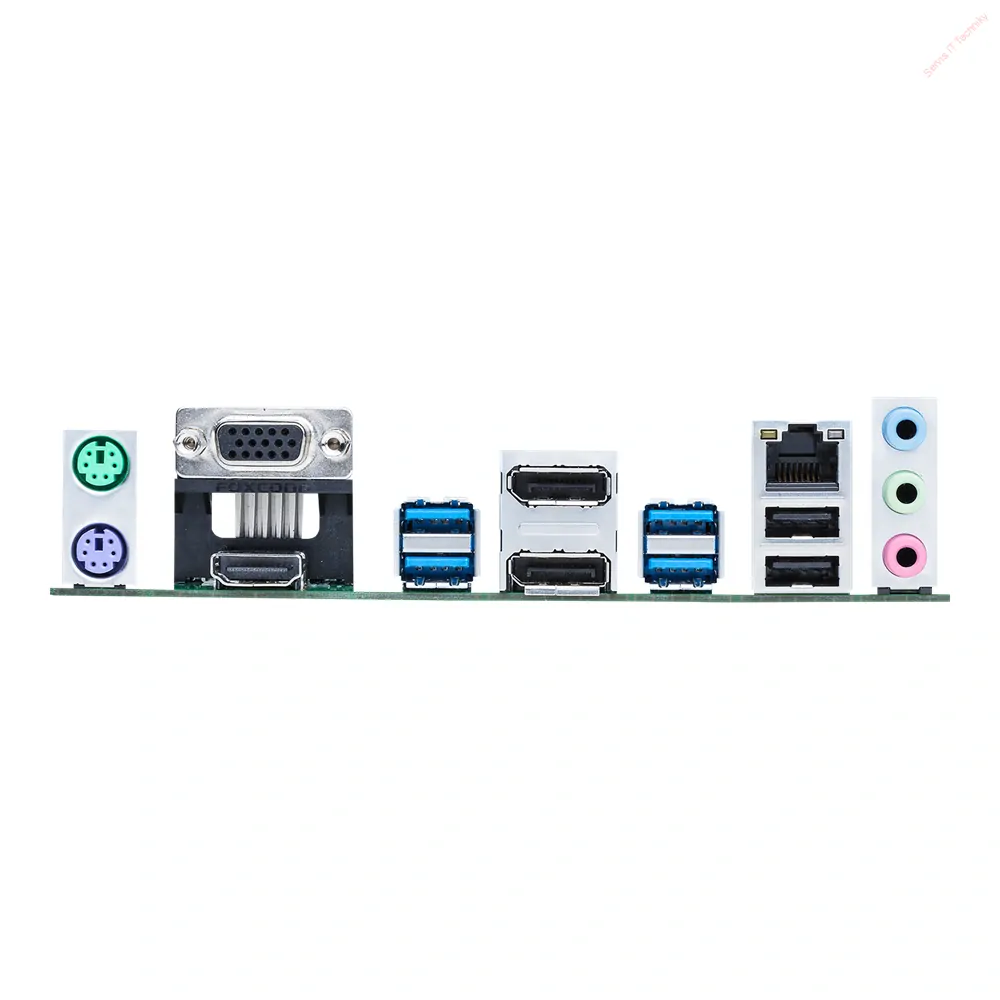

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
2 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 1 Type-A
2 x USB 2.0
3 x Audio jack(s)

1 x MONO out header *²
2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
1 x SPI TPM header
1 x LPT header
2 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
1 x Chassis Intrusion connector(s)
1 x LPC Debug header

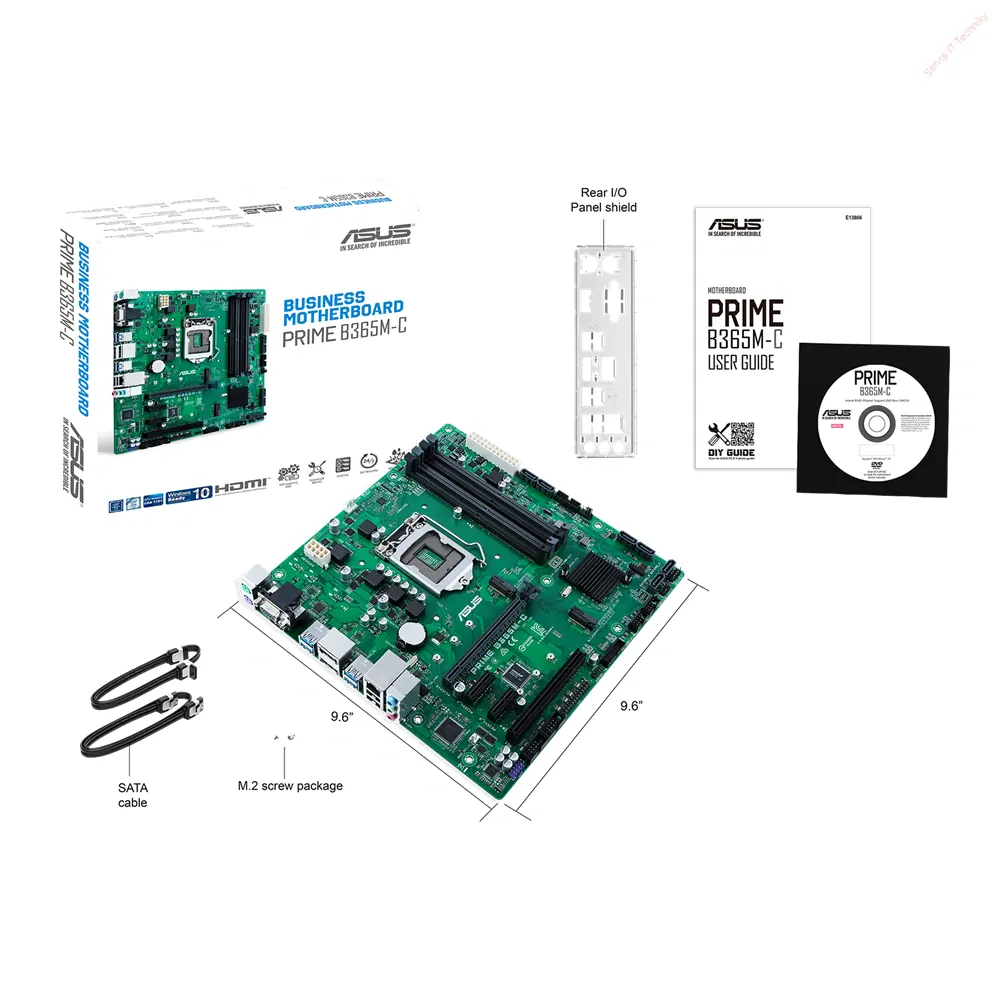

User´s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD

128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS Self-Recovering BIOS, ASUS Event log, ASUS Commercial Kit

WOL, PXE

Watch dog timer, Drivers, ASUS Commercial Kit

Windows® 10 64-bit

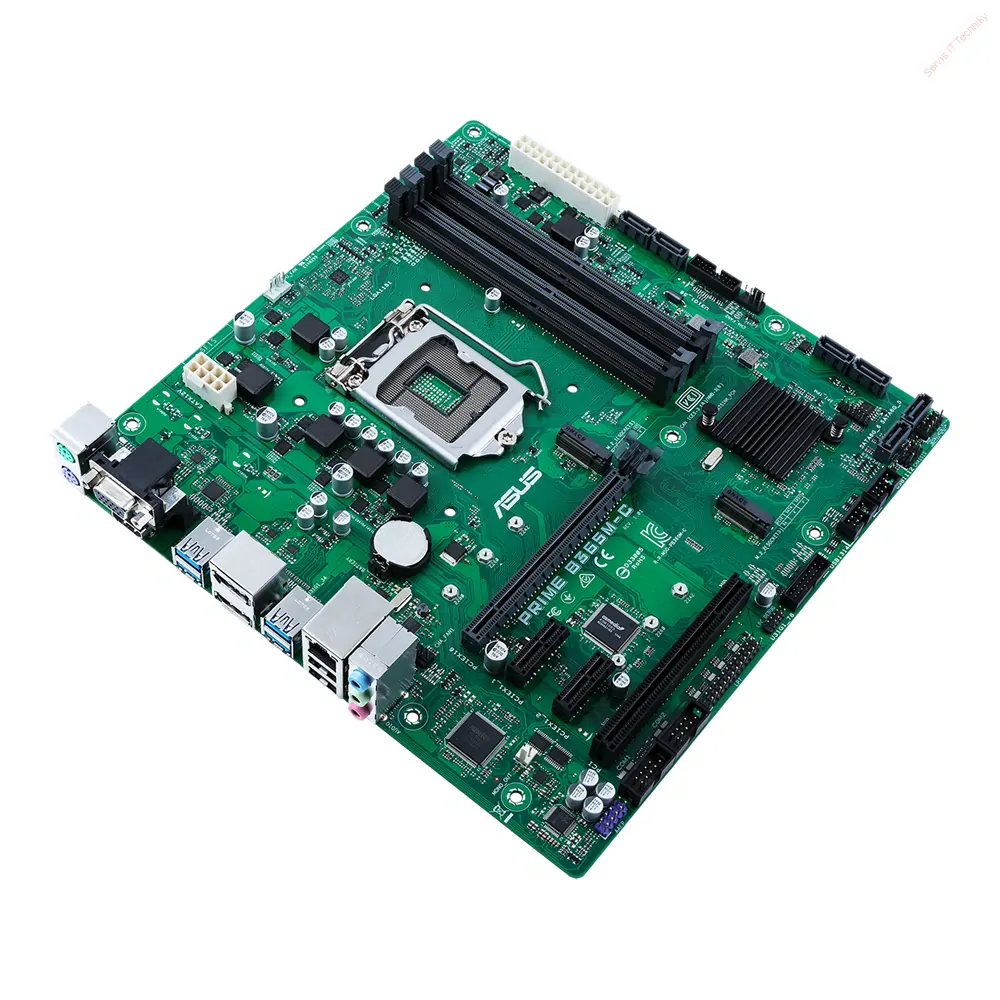

uATX Form Factor
9.6  inch x 9.6  inch ( 24.4  cm x 24.4  cm )

*1: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
*2: Use with amplified speaker is suggested.
